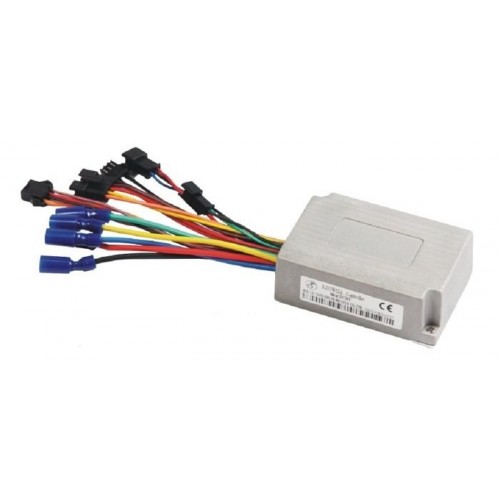

TS EBIKE HUB MOTOR CONTROLLER TS-W22C 9 MOSFETS
Suitable for Brushless hub motor with or without hall sensor
TS EBIKE HUB MOTOR CONTROLLER TS-W22C 9 MOSFETS
Rated Voltage:24V/36V/48V; Rated Power: 180W~350W
Undervoltage Protect: 31.5V±0.5V/42V±0.5V; Current Limit Protect: 15A±1A(Regulable)
Speed Limit: 25km/h, 35km/h; Quiescent disspiation:≤2W
Normal working temperature:-20~+50℃; Throttle voltage: 1.2~3.8V
Running Mode: Electromotion Mode, 1+1 power assistant mode, Automatic running mode, energy saving mode,guard against theft mode; Power Assist Mode: Speed sensor/Torque sensor
Matching Motor: Brushless motor with or without hall sensor
Circuit Protect: current limit and overcurrent protect, undervoltage and return difference protect, throttle fault detection,power device protect
Braking Mode: High voltage and low voltage + EBS braking
EBIKE CONTROLLER
122x74x35mm 24V,36V,48V
TS 24V/36V/48V EBIKE CONTROLLER 9 MOSFETS
- Product Code: TS-W22C 9 MOSFETS
- Availability: In Stock
-
$31.00
- Ex Tax: $31.00
Available Options
Tags: EBIKE CONTROLLER
