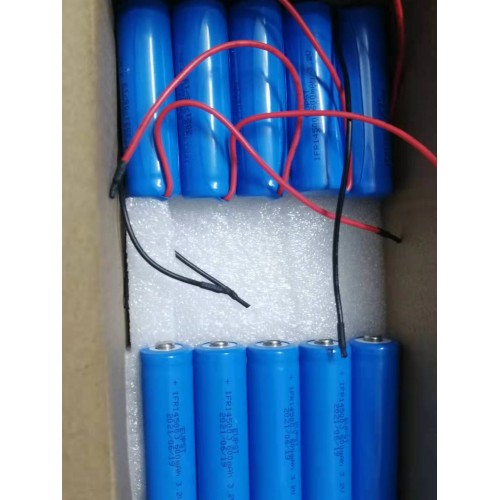

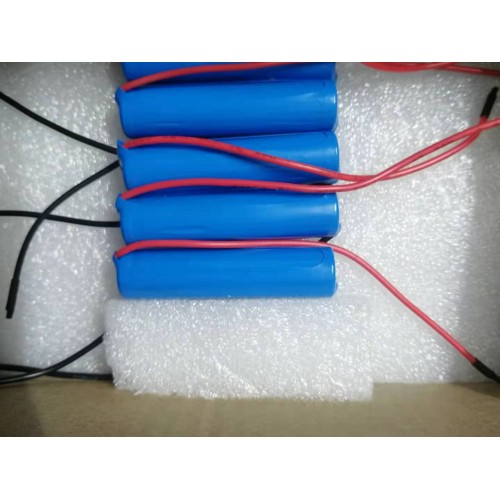

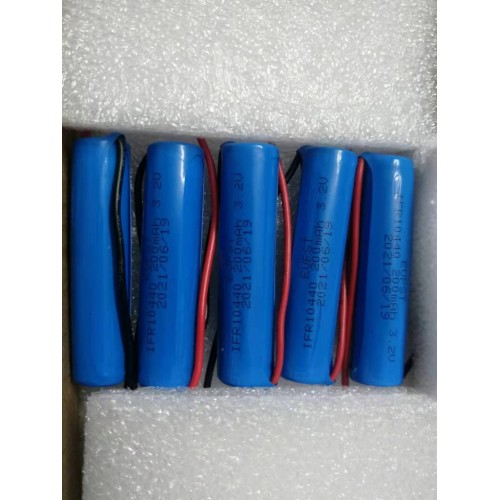

3.2v200mAh IFR10440 LiFePo4 cylinderical battery cell

 Tech.Sheet:

1. Nominal voltage: 3.2v

2. Capacity: 200mAh

3. Impedance(mΩ):≤95mΩ(Subject to the real test); AC, 1kHz, Full charged

4. Max. Continuous Discharge: 600mA; Pulse Discharge Rate:1000mA for 5sec.

5. Max. charge current:  200mA

6. Upper limit charge  voltage: 3.65v; Cutoff voltage: 2.0v

7. Charge method: CC/CV

 8. External Dimension(mm):10x44mm

9. 1500cycles with DOD at 80%

10. Weight: 0.0085kg

Packing : Carton

Suitable for electronics devices, wireless devices, etc.…
